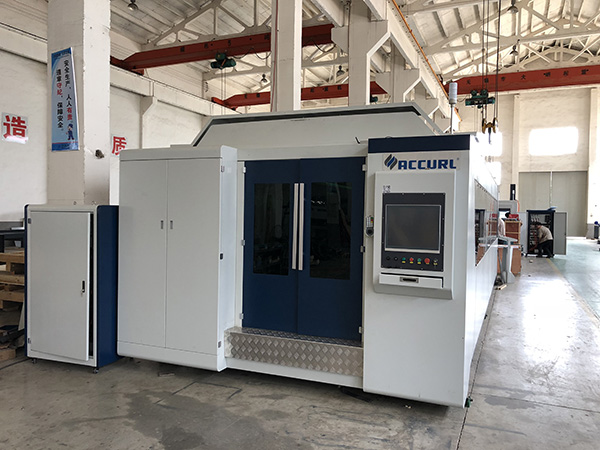

500W 750W 1000W 1500W 2000W 3000W 4000W ໂລຫະເຄື່ອງຕັດໂລຫະ

ເຄື່ອງຈັກທີ່ດີ 500W 750W 1000W 1500W 2000W 3000W 4000W ເຄື່ອງຕັດໂລຫະເລເຊີ

ຂໍ້ມູນຈໍາເພາະ


ຄວາມໄວຕັດ: 0-40000 ມມ / ນາທີ
ຮູບແບບຮູບພາບສະຫນັບສະຫນູນ: AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Application: Laser Cutting
ເງື່ອນໄຂ: ໃຫມ່
ຄວາມຫນາ: 0-30 ມົມ
CNC ຫຼືບໍ່: ແມ່ນແລ້ວ
Cooling Mode: Cooling Water
ການຄວບຄຸມຊອບແວ: Ruida
ພື້ນທີ່ຕົ້ນກໍາເນີດ: Anhui, ຈີນ (ແຜ່ນດິນໃຫຍ່)
Model Number:fiber laser cutting machine
ການຮັບຮອງ: CE, ISO
Item:metal fiber laser cutting machine
color:as your need
laser tube:150w 180w 280w 300w
ປະເພດເລເຊີ: laser ເສັ້ນໄຍ
Cutting speed:50-5000mm/min
Power supply:220V±10% /50Hz , 110V±10%
Graphic format supported:BMP, PLT,DST,DXF,AI,CDR
Software supported:CorelDraw, PhotoShop
Highest Scanning Precision:2000DPI
Location precision:<0.01mm
ບໍລິການຫລັງການຂາຍໄດ້ສະຫນອງ: ວິສະວະກອນທີ່ມີຢູ່ໃນບໍລິການບໍລິການຕ່າງປະເທດ



500w 750w 1000w 2000w ເຄື່ອງຕັດໂລຫະສະແຕນເລດເຫຼັກກ້າກາກບອນເຫຼັກ 1500 * 3000 ມມ

Item  /  ModelECO-FIBER-1530
Cutting area1300 x2500mm
ພະລັງງານເລເຊີ500W/750w/1000w/2000w
ປະເພດເລເຊີfiber laser
Engraving speed0-60000mm/min
ຄວາມໄວຕັດ0-40000mm/min
Focus MethodDynamic Following and Automatic Adjust Focus
Resetting positioning accuracy001 ມົມ
ການສະຫນອງພະລັງງານ380V/50HZ (Optional 220V/50HZ)
Operating temperature0 - 45°C
Operating humidity5 - 95%
Min shaping characterEnglish 1.0 x 1.0mm
ຮູບແບບກາຟິກສະຫນັບສະຫນູນBMP, PLT, DST, DXF, AI
Software supportedTAJIMA, CorelDraw, Photoshop, AutoCAD
ລະບົບຂັບຂີ່Japanese Panasonic Servo motor & Driver
Cooling modeລະບົບການເຮັດຄວາມເຢັນແລະລະບາຍນ້ໍາ
Equipment Dimensions1990x1400x1470mm
Net Weight:1550kg
Shipping Dimensions2090 x 1500 x 1570mm
Optional Spare PartsUp-down clump, Rotary System, Honeycomb table
Control Methodoffline movement Control



carbon fiber laser cutting machine features:


1. Advanced Germany Technology: ensure most high tech in the world.

2. Advanced Laser Optical System: Ensure Excellent Laser Beam Quality Double-Xenon-lamp technology, can strongly improve the laser power and laser beam quality.

3. Laser Path Pre-view & Pre-position Function: Laser beam is in-visible by adopting “Red Light Pointer”,Realize the laser path pre-view and Pre-position function.

4. Pre-view and pre-run function: Simulate the laser cutting path, Pre-run the cutting path in advance, Ensure finding the accurate cutting position.

5. Unique Mirrors and Lens Cooling Technology: All mirrors and lens is cooled by water, Takes the mirror heat during working, Prolong its’ lifetime, Save future operation cost.

6. Heavy Machine Body: Adopt 100mm*100mm*6mm thick, square metal tube Stable, Heavy Loading, Won’t distortion after long-time using, Worktable Max. Load can reach 500 kgs. Adopt a funnel-type machine bed design, Work with conveyor belt, Easy for user to get the cutting pieces from the machine front.

7. Auto transfer system: Can automatically transfer the cutted work-pieces into the front of machine, Improve working efficiency, Save labor energy, No need user to take it by hand. Make the work-pieces neat and beautiful.

8. Auto Oil-filling system: Press for once, can lubricate the machine transmission rod for 2-3 months.

9. Red light pointer: As the laser beam is in-visible, We adopt red light pointer to indicate the real position ofthe laser beam, Make cutting more accurate.

10. Dynamic Auto-focus System: Keep the same distance between the metal sheet and laser head, Realize the accuracy of cutting effect.

11. Auto-feeding Design: Adopt feeding wheel design, Make the material feeding easier, Labor energy saving.
